Segmentation error matrix

The Segmentation Error Matrix analysis in AUDIT provides an intuitive way to assess model performance at the pixel level. It visualizes the confusion matrix of predicted vs. ground truth segmentations for each subject or aggregated across a dataset. This helps identify common misclassifications between tumor subregions and assess overall segmentation quality.

The goals of segmentation error matrix analysis are to:

  • Visualize systematic errors across a dataset or individual subject.
  • Assess prediction quality for individual tumor subregions, identifying which classes are most accurately segmented and which are often confused.
  • Spot model failure modes not captured by summary metrics like Dice.

🎥 Demo video

Below is a short video that walks you through the segmentation error matrix mode interface:

Watch the video

⚙️ User configuration

1. Dataset selection

In this mode, users can select a single dataset from the dropdown in the sidebar. Unlike other modes in AUDIT (such as the Multivariate analysis mode), the segmentation error matrix is not designed for multi-dataset comparison within the same view. Instead, its purpose is to provide a focused and detailed evaluation of how a segmentation model performs on a specific dataset by analyzing which tumor subregions are well segmented and which are commonly misclassified.

It is important that the segmentation labels and the ground truth labels must be aligned properly; otherwise, the analysis mode will not work correctly. You can follow this tutorial where it is explained how to modify the dataset labels to ensure proper alignment.

Warning

This analysis mode compares the predicted segmentations directly against the ground truth labels.
Therefore, it can only be used when the original ground truth segmentations are available in the dataset.
If the dataset only contains predictions and lacks reference segmentations, the confusion matrix cannot be computed.

2. Model selection

In this step, users must select the segmentation model whose predicted outputs will be compared against the ground truth segmentations of the chosen dataset. This is crucial because the confusion matrix is computed by analyzing the pixel-wise agreement (or disagreement) between the model’s predictions and the ground truth labels.

The dropdown menu lists all available models that have generated predictions for the selected dataset. Selecting a model will load its prediction masks, which are then aligned with the ground truth segmentations to compute the pseudo-confusion matrix. Users can compare multiple models by changing this selection and observing differences in the matrices, which helps identify strengths and weaknesses in segmentation performance at the class level.

Models might differ in terms of architecture, training data, or preprocessing pipelines, so this step allows for flexible evaluation of any medical image segmentation model whose outputs are available in AUDIT.

3. Select the subject ID to visualize

Users have the option to select which subject(s) they want to analyze through the confusion matrix:

  • Specific subject: Selecting an individual subject ID will display the confusion matrix for that single case. This allows detailed inspection of how the model performed on that particular subject, helping to identify subject-specific errors or unique segmentation challenges.

  • All: Choosing All aggregates the confusion matrices of every subject in the dataset into a single summary matrix. This aggregated view provides an overview of the model’s overall common error patterns across the entire cohort, smoothing out subject-level variability.

This flexibility enables both granular, case-by-case evaluation and broad, cohort-level assessment within the same interface.

📊 Visualization

The pseudo-confusion matrix shown in this mode is structured as follows:

  • Rows represent the ground truth (true) labels, indicating the actual pixel classifications.
  • Columns represent the predicted labels output by the segmentation model, indicating the model’s pixel-wise classification.
  • Diagonal cells correspond to correctly classified pixels, where the predicted label matches the true label. Not shown, the matrix highlights only errors.
  • Off-diagonal cells highlight misclassifications, where the predicted label differs from the true label.

Info

Darker colors in the matrix represent larger errors or higher misclassification rates by the model,
while lighter cells indicate fewer errors or better agreement between prediction and ground truth.

The confusion matrix is normalized row-wise, meaning each row sums to 100%, which helps interpret the prediction distribution per true label. Since this is a pseudo-confusion matrix, pixels correctly classified are not indicated within the matrix. It is expected that the model classifies most of the regions correctly, so this analysis mode focuses on systematic errors instead.

Example

For example, if the true label is "edema", the cells might be distributed as follows:
- A value of 70% in the "bkg" column means 70% of edema pixels were wrongly predicted as background.
- 25% in the "enh" column means 25% of edema pixels were wrongly predicted as enhancing tumor.
- 5% in the "nec" column means 5% of edema pixels were wrongly predicted as necrosis.

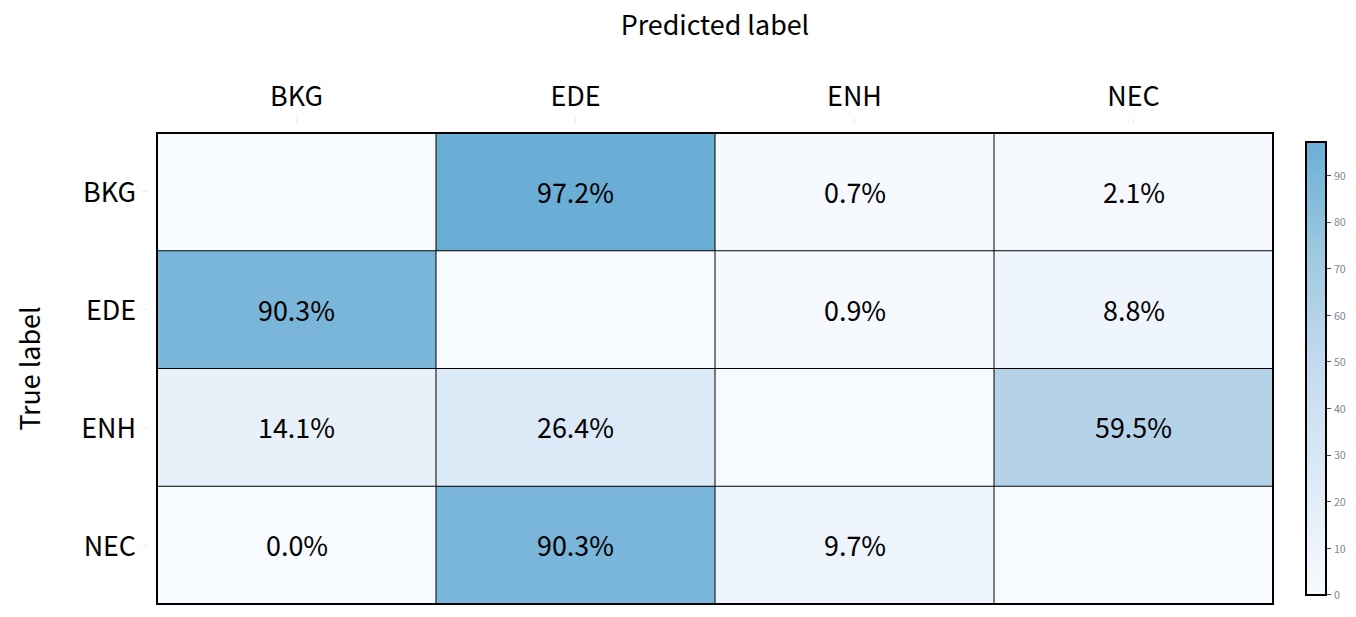

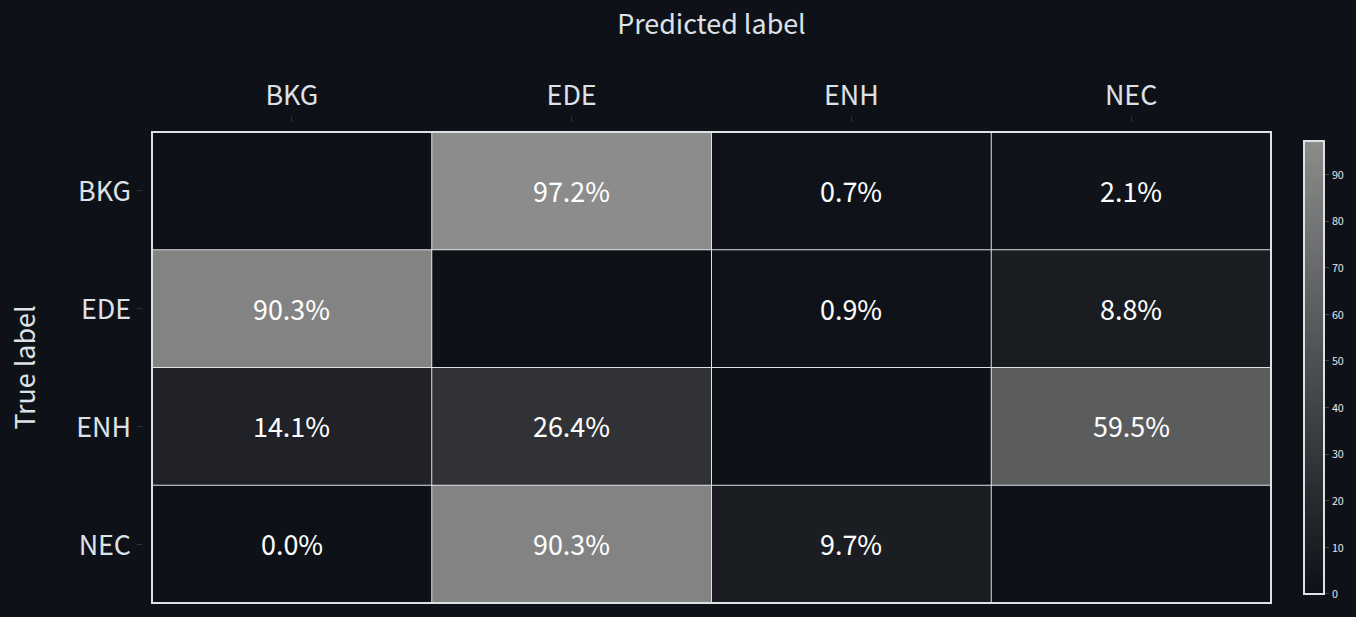

Confusion matrix example
Confusion matrix example Figure 1: Single subject confusion matrix for the nnUNet model on the BraTS2024_SSA dataset. The rows represent the true pixel labels. The columns represent the model's predicted labels. Darker cells indicate a higher percentage of misclassified pixels between true and predicted classes.

🧰 Additional options

Normalization and averaging

  • Normalized per ground truth label (enabled by default): normalizes each row so percentages sum to 100%, which makes it easier to interpret class-wise prediction behavior. When this button is disabled cells show the total number of misclassified pixels.

  • Averaged per number of subjects (only available when "All" subjects are selected): computes the average pseudo-confusion matrix across all subjects.

Warning

Be aware that the absolute pixel count of misclassified regions can be influenced by the voxel spacing of each MRI scan.
For this reason, it is highly recommended to register all datasets to a common reference space, so that voxel sizes and orientations are standardized. Otherwise, cross-dataset comparisons can become difficult to interpret.

ITK-SNAP integration

When a single subject is selected, users can launch ITK-SNAP to directly inspect the segmentation results in 3D.
This launches the ground truth and predicted segmentations side by side.

Tip

This feature is ideal for verifying segmentation quality when unusual confusion patterns appear in the matrix. It can reveal issues like label swapping, partial segmentations, or preprocessing errors.

Warning

ITK-SNAP must be installed and correctly configured in your system for this option to work.

All confusion matrices in AUDIT are fully interactive and support:

  • Hover to reveal exact percentages
  • Dynamic updates when selecting different datasets, models, or subjects

Whether you're debugging segmentation behavior or reporting evaluation results, this tool provides a clear and quantitative view into model errors and class-wise performance.
