BraTS 2024 Tutorial
This tutorial guides you step by step through preparing the BraTS 2024 dataset, organizing it, configuring feature extraction, and launching the interactive dashboard to explore your data using the AUDIT framework.
Unlike BraTS 2025, this dataset includes a demographic mapping file containing valuable metadata such as glioma type, MRI scanner specifications, magnetic field strength, and patient demographics. This enables a deeper analysis not only exploring dataset structure and image-derived features but also uncovering potential biases or acquisition-related differences that may affect model performance.
AUDIT provides a unified environment to analyze, compare, and visualize these variations across patient cohorts, acquisition sites, and demographic groups.
References:
-
The 2024 Brain Tumor Segmentation (BraTS) Challenge: Glioma Segmentation on Post-treatment MRI
-
BraTS orchestrator : Democratizing and Disseminating state-of-the-art brain tumor image analysis
Note
The annotation protocol followed in this tutorial was: Label 0: Background, Label 1: Non-enhancing tumor core, Label 2: surrounding non-enhancing FLAIR hyperintensity, Label 3: Enhancing tumor, Label 4: resection cavity. However, we encourage users to check the protocol used in their datasets.
1. Prerequisites
Before starting, make sure you are familiar with the BraTS 2025 tutorial, as this guide assumes you already understand the fundamentals of AUDIT, such as environment setup, project structure, and configuration files.
We recommend using an isolated Anaconda environment with Jupyter Notebook and following the same project organization used in the previous tutorial.
The BraTS 2024 dataset is hosted on Synapse and requires prior registration. Please follow the official instructions from the challenge and to BraTS 2024 Data Access section to download the data.
Once downloaded and unzipped, store the training and additional training sets in a directory called
.datasets/BraTS_2024. The metadata file must be stored in the project root. The project structure should look like
this before starting:
brats2024_project/
├── datasets/
├──── BraTS_2024/
├─────── BraTS-GLI-00005-100/
├─────── BraTS-GLI-00005-101/
├─────── .....
├── config/
├── outputs/
├── logs/
├── BraTS-PTG supplementary demographic information and metadata.xlsx
2. Exploring the metadata
Before working with the imaging data, it is useful to explore the metadata. The BraTS 2024 demographic spreadsheet includes variables such as acquisition site, magnetic field strength, scanner manufacturer, patient age, sex, and glioma type - all of which can later be used to stratify analyses and investigate dataset heterogeneity.
Let’s begin by loading the file in a pandas DataFrame and take a first look:
import pandas as pd
mapping = pd.read_excel("./BraTS-PTG supplementary demographic information and metadata.xlsx")
mapping.head(4)
This will give you a table like this:
| BraTS Subject ID | Site | Site Subject ID | Annotator 1 | Approver 1 | Train/Test/Validation | Magnetic Field Strength | Manufacturer | Patient's Age | Patient's Sex | Glioma type |
|---|---|---|---|---|---|---|---|---|---|---|
| BraTS-GLI-00005-100 | UCSF | 1002251 | NaN | AMR | Train | 3.0 | GE | 50.0 | M | Oligodendroglioma |
| BraTS-GLI-00005-101 | UCSF | 1002252 | NaN | AMR | Train | 3.0 | GE | 50.0 | M | Oligodendroglioma |
| BraTS-GLI-00006-100 | UCSF | 1001751 | BKKF | JDR | Train | 3.0 | GE | 39.0 | F | Glioblastoma |
| BraTS-GLI-00006-101 | UCSF | 1001752 | BKKF | JDR | Train | 3.0 | GE | 39.0 | F | Glioblastoma |
Each patient record is linked to a specific site and scanner configuration. Later, you can use this information to partition the dataset and perform site-wise or scanner-wise analyses.
For this tutorial, we will focus on the training and additional training subsets, excluding validation data.
3. Organizing the dataset by site
To facilitate comparisons between different acquisition centers, we will reorganize the dataset into site-specific folders. The function below automates the process by reading the metadata and copying each subject folder into the appropriate subdirectory. However, we encourage users to perform their own analyses, exploring splitting by glioma type, magnetic field strength, manufacturer, and other variables.
The goal is to show how AUDIT can help you better understand your dataset and perform a more accurate evaluation of segmentation models and MRI cohorts.
Let's create a function to move each patient into their corresponding folder, instead of keeping all of them grouped in a single directory.
import os
import shutil
def organize_patients(df, column, input_dir, output_dir):
"""
Organize patient folders into subfolders based on a DataFrame column.
Parameters
----------
df : pd.DataFrame
Metadata DataFrame (must contain 'BraTS Subject ID').
column : str
Column name to organize by (e.g., 'Site', 'Manufacturer', 'Glioma type').
input_dir : str
Directory containing all patient folders (e.g., 'BraTS_2024').
output_dir : str
Directory where organized folders will be created (e.g., 'BraTS_2024_by_site').
"""
os.makedirs(output_dir, exist_ok=True)
for _, row in df.iterrows():
subject = row["BraTS Subject ID"]
category = str(row[column]) # subfolder name
# Create category subfolder if it doesn’t exist
category_folder = os.path.join(output_dir, category)
os.makedirs(category_folder, exist_ok=True)
# Source patient folder/file
subject_path = os.path.join(input_dir, subject)
dest_path = os.path.join(category_folder, subject)
if os.path.exists(subject_path):
if os.path.isdir(subject_path):
shutil.copytree(subject_path, dest_path, dirs_exist_ok=True)
else:
shutil.copy2(subject_path, dest_path)
else:
print(f"Subject {subject} not found in {input_dir}")
print(f"Organization completed in {output_dir}")
This function allows you to organize patients into separate directories and can be reused for any other analysis you want to perform with the BraTS 2024 dataset. Run the following code to organize your data by acquisition site:
input_dir = "./datasets/BraTS_2024"
output_dir = "./datasets/BraTS_2024_by_site"
organize_patients(df, column="Site", input_dir=input_dir, output_dir=output_dir)
Ready! After running this, your project structure will look like:
brats2024_project/
├── datasets/
├──── BraTS_2024_by_site/
├────── Duke/
├──────── Duke-02060-100/
├──────── Duke-02060-101/
├──────── .....
├────── Indiana/
├────── Missouri/
├────── UCSD/
├────── UCSF/
├── config/
├── outputs/
├── logs/
├── BraTS-PTG supplementary demographic information and metadata.xlsx
To be able to take advantage of all functionalities of AUDIT, for instance the connectivity with ITK-Snap toolkit, we recommend locating the sequences and masks under the same folder, and predictions for each model under another. Then, The project structure should be the following.
brats2024_project/
├── datasets/
├──── BraTS_2024_by_site/
├────── Duke/
├──────── Duke_images/
├────────── Duke-02060-100/
├────────── Duke-02060-101/
├────────── .....
├──────── Duke_segs/
├────────── model_1/
├──────────── Duke-02060-100_pred.nii.gz
├──────────── Duke-02060-101_pred.nii.gz
├────────── .....
├────────── model_2/
├──────────── Duke-02060-100_pred.nii.gz
├──────────── Duke-02060-101_pred.nii.gz
├────────── .....
├────── Indiana/
├────── Missouri/
├────── UCSD/
├────── UCSF/
├── config/
├── outputs/
├── logs/
├── BraTS-PTG supplementary demographic information and metadata.xlsx
4. Standardize folder and file naming
As in the BraTS 2025 tutorial, we need to standardize the folder and file names to ensure AUDIT compatibility. This includes replacing prefixes, updating sequence identifiers, and ensuring consistent use of underscores. Check BraTS 2025 tutorial for more details.
4.1 Rename folders and files
We’ll first replace the BraTS-GLI- prefix with the site name for clarity.
sites = ["Duke", "Indiana", "Missouri", "UCSD", "UCSF"]
for s in sites:
rename_dirs(
root_dir=os.path.join(output_dir, s),
old_name="BraTS-GLI",
new_name=s,
safe_mode=False
)
rename_files(
root_dir=os.path.join(output_dir, s),
old_name="BraTS-GLI",
new_name=s,
safe_mode=False
)
4.2 Standardize sequence
Additionally, to make the sequence names clearer and consistent, we will replace suffixes:
old_names = ['-seg.nii.gz', '-t1c.nii.gz', '-t1n.nii.gz', '-t2f.nii.gz', '-t2w.nii.gz']
new_names = ['_seg.nii.gz', '_t1ce.nii.gz', '_t1.nii.gz', '_flair.nii.gz', '_t2.nii.gz']
sites = ["Duke", "Indiana", "Missouri", "UCSD", "UCSF"]
for s in sites:
for o, n in zip(old_names, new_names):
rename_files(
root_dir=os.path.join(output_dir, s),
old_name=o,
new_name=n,
safe_mode=False
)
4.3 Replace dashes with underscores (optional)
Finally, to ensure consistent naming conventions, we replace all - characters with _:
for s in sites:
rename_files(root_dir=root_dir=os.path.join(output_dir, s), old_name="-", new_name="_", safe_mode=False)
rename_dirs(root_dir=root_dir=os.path.join(output_dir, s), old_name="-", new_name="_", safe_mode=False)
5. Run feature extraction
Now that the datasets are ready, let’s configure the feature extraction. AUDIT takes advantage of YAML configuration
files for extracting features and metrics and running the app. All of them have been created automatically inside
the configs/ at the time of generating the project structure. The one we need to edit to run the feature extraction
is named feature_extraction.yaml.
Here we provide the config file needed for this project. In it, paths to datasets, sequences names, labels mapping, features to extract, and output paths need to be defined.:
# Paths to all the datasets
data_paths:
Duke: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Duke/Duke_images/'
Indiana: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Indiana/Indiana_images/'
Missouri: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Missouri/Missouri_images/'
UCSD: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/UCSD/UCSD_images/'
UCSF: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/UCSF/UCSF_images/'
# Sequences available
sequences:
- '_t1'
- '_t2'
- '_t1ce'
- '_flair'
# Mapping of labels to their numeric values
labels:
BKG: 0
NETC: 1
SNFH: 2
ET: 3
RC: 4
# List of features to extract
features:
statistical: true
texture: true
spatial: true
tumor: true
# Output paths
output_path: '/home/usr/brats2024_project/outputs/features'
logs_path: '/home/usr/brats2024_project/logs/features'
# Resources
cpu_cores: 4
Run feature extraction by using the following command:
After execution, /home/usr/brats2024_project/outputs/features will contain the extracted features for all the datasets.
Important
All paths must be absolute. Otherwise, AUDIT may fall back to its internal default config files.
6. Launch the dashboard (without predictions)
Once features are extracted, we can explore them using the web app. We should edit the config file named app.yaml and
adapt it as follows:
# Sequences available
sequences:
- '_t1'
- '_t2'
- '_t1ce'
- '_flair'
# Mapping of labels to their numeric values
labels:
BKG: 0
NETC: 1
SNFH: 2
ET: 3
RC: 4
# Root paths
datasets_path: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site'
features_path: '/home/usr/brats2024_project/outputs/features'
metrics_path: '/home/usr/brats2024_project/outputs/metrics'
# Raw datasets
raw_datasets:
Duke: "${datasets_path}/Duke/Duke_images"
Indiana: "${datasets_path}/Indiana/Indiana_images"
Missouri: "${datasets_path}/Missouri/Missouri_images"
UCSD: "${datasets_path}/UCSD/UCSD_images"
UCSF: "${datasets_path}/UCSF/UCSF_images"
# Feature extraction CSVs
features:
Duke: "${features_path}/extracted_information_Duke.csv"
Indiana: "${features_path}/extracted_information_Indiana.csv"
Missouri: "${features_path}/extracted_information_Missouri.csv"
UCSD: "${features_path}/extracted_information_UCSD.csv"
UCSF: "${features_path}/extracted_information_UCSF.csv"
# Metric extraction CSVs
metrics:
# Model predictions
predictions:
Launch the app with:
Now it’s time to explore the datasets!
Keep in mind that some feature types may influence generalization across cohorts more than others. For example, while the statistical features appear quite similar between the datasets, we encourage you to dive deeper into the data, experiment with different feature sets, and challenge your models to reach the next level of performance.

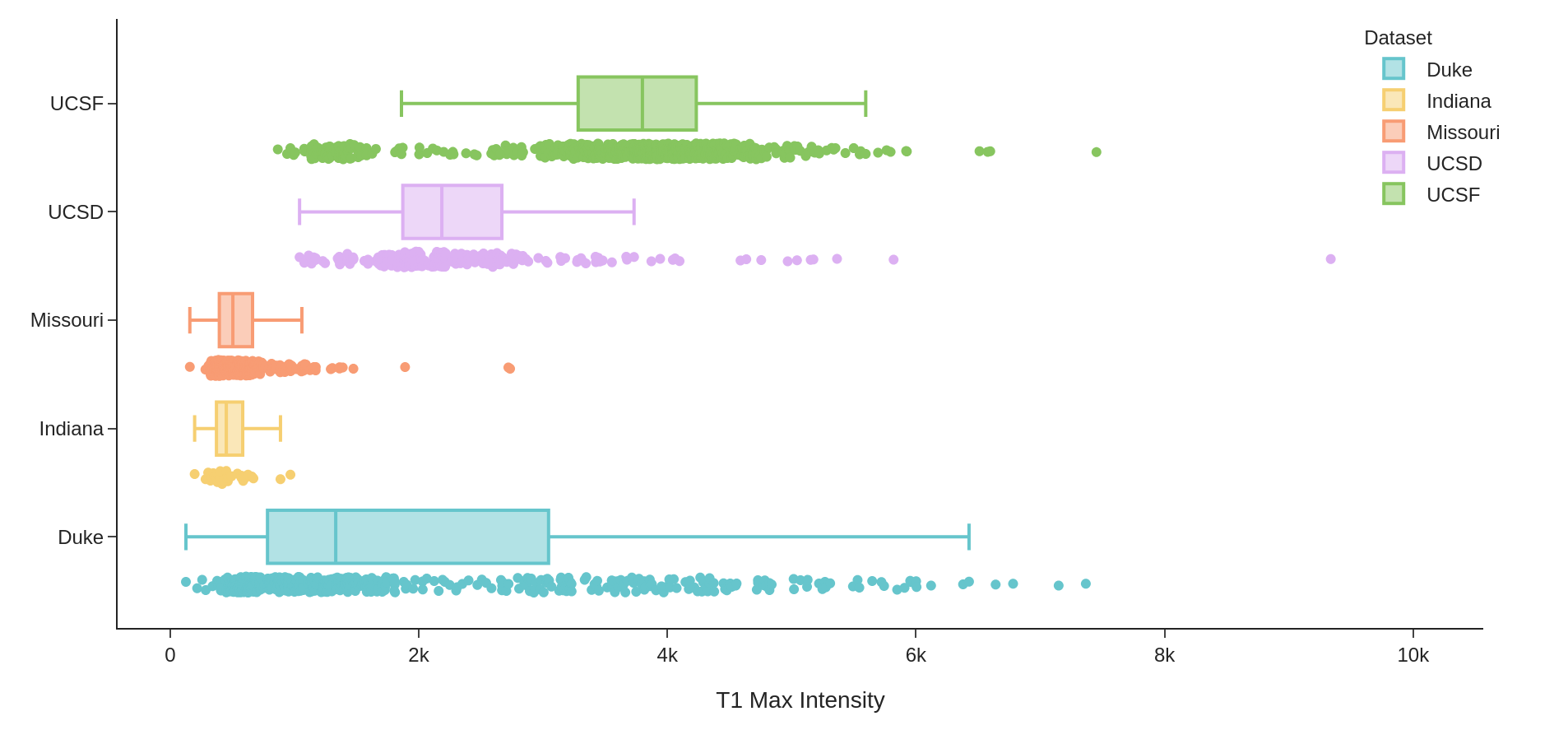

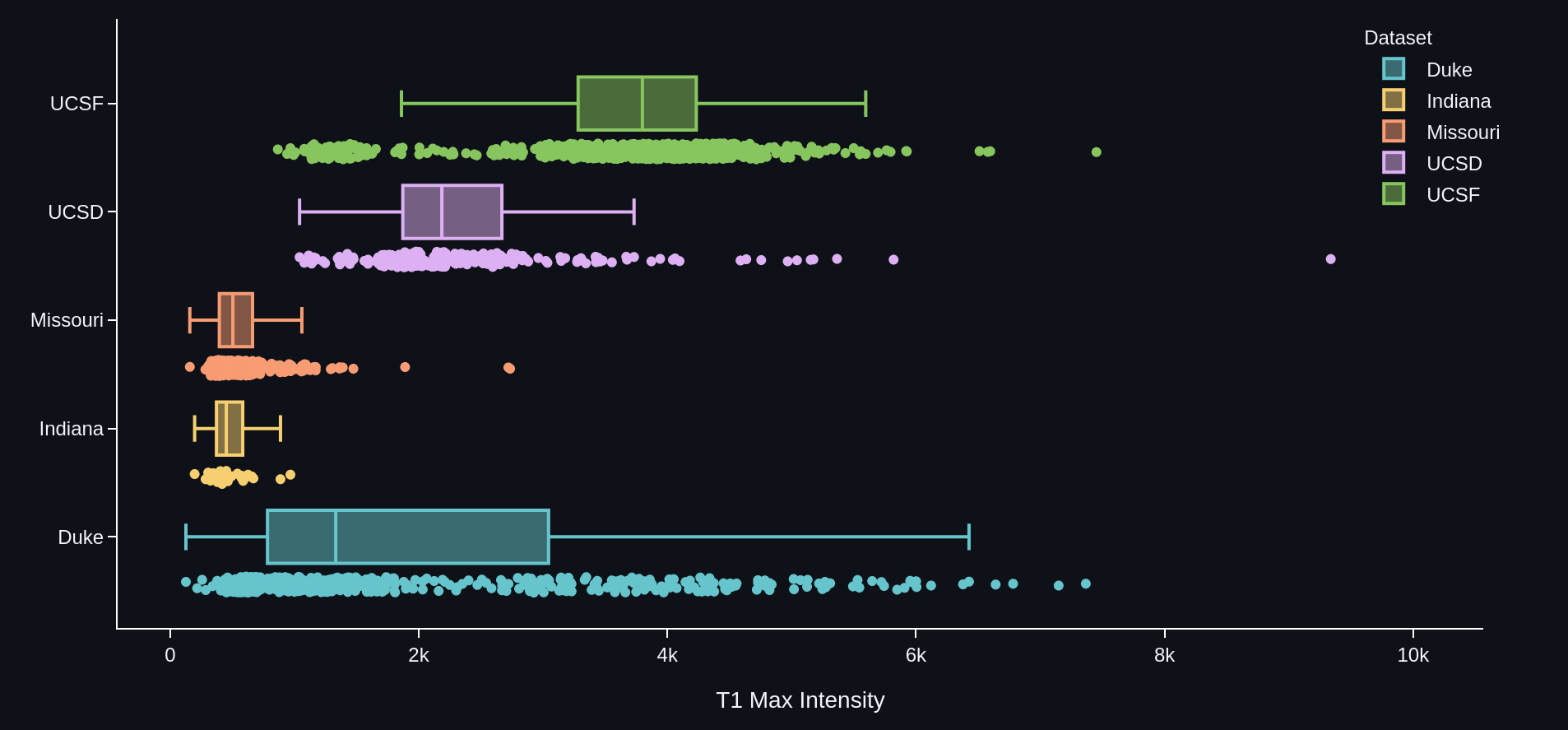

Figure 1: Univariate feature analysis mode. Maximum pixel intensity distribution for T1 sequence.
If everything has been set up correctly — especially making sure to include the patients (original sequences and masks) within the dataset_images directory (e.g., datasets/Duke/Duke_images/), and ITK has been installed properly as suggested in the documentation, then it is possible to click on any of the points of interest and explore them directly in ITK-SNAP. In our case, we clicked on the patient Indiana-03062-100.

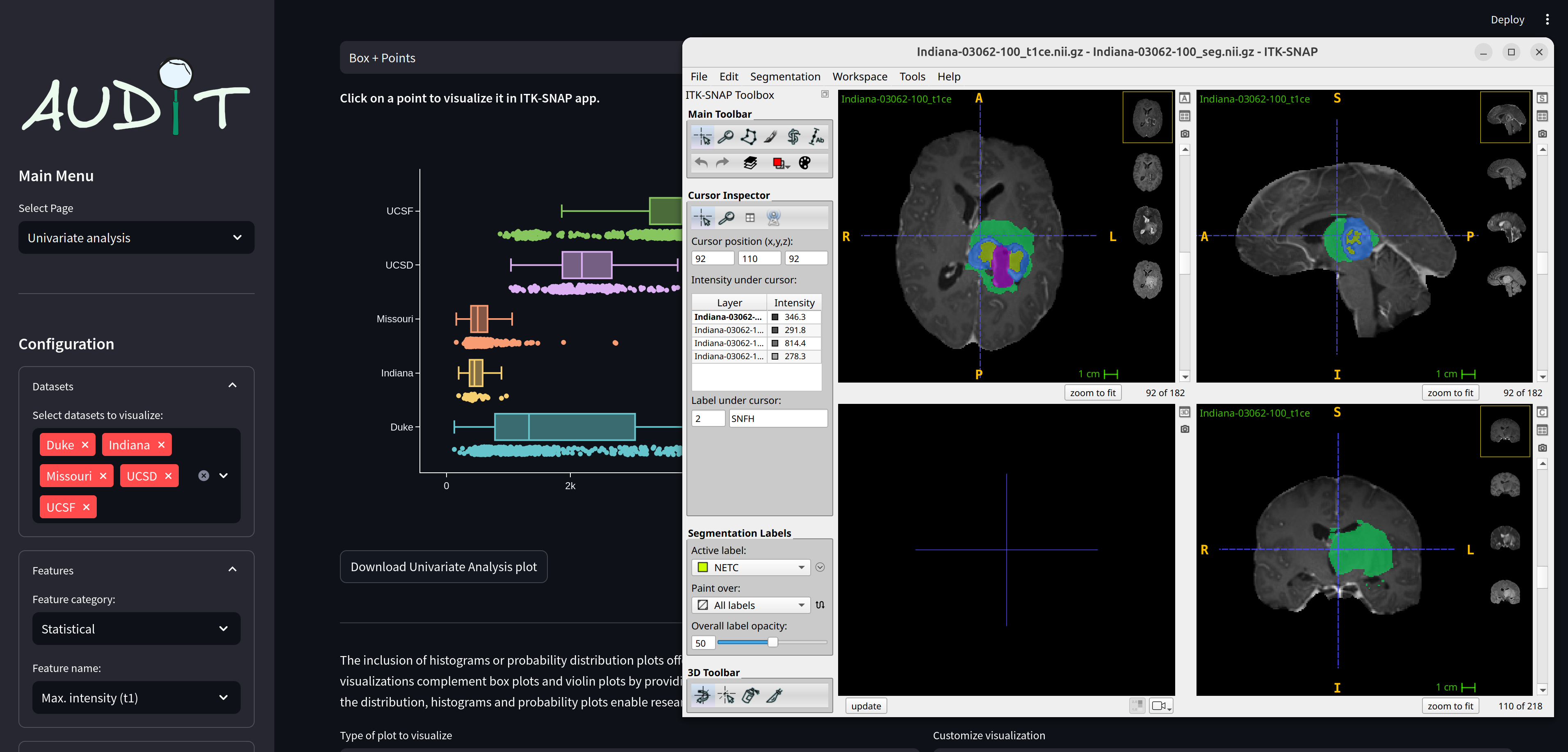

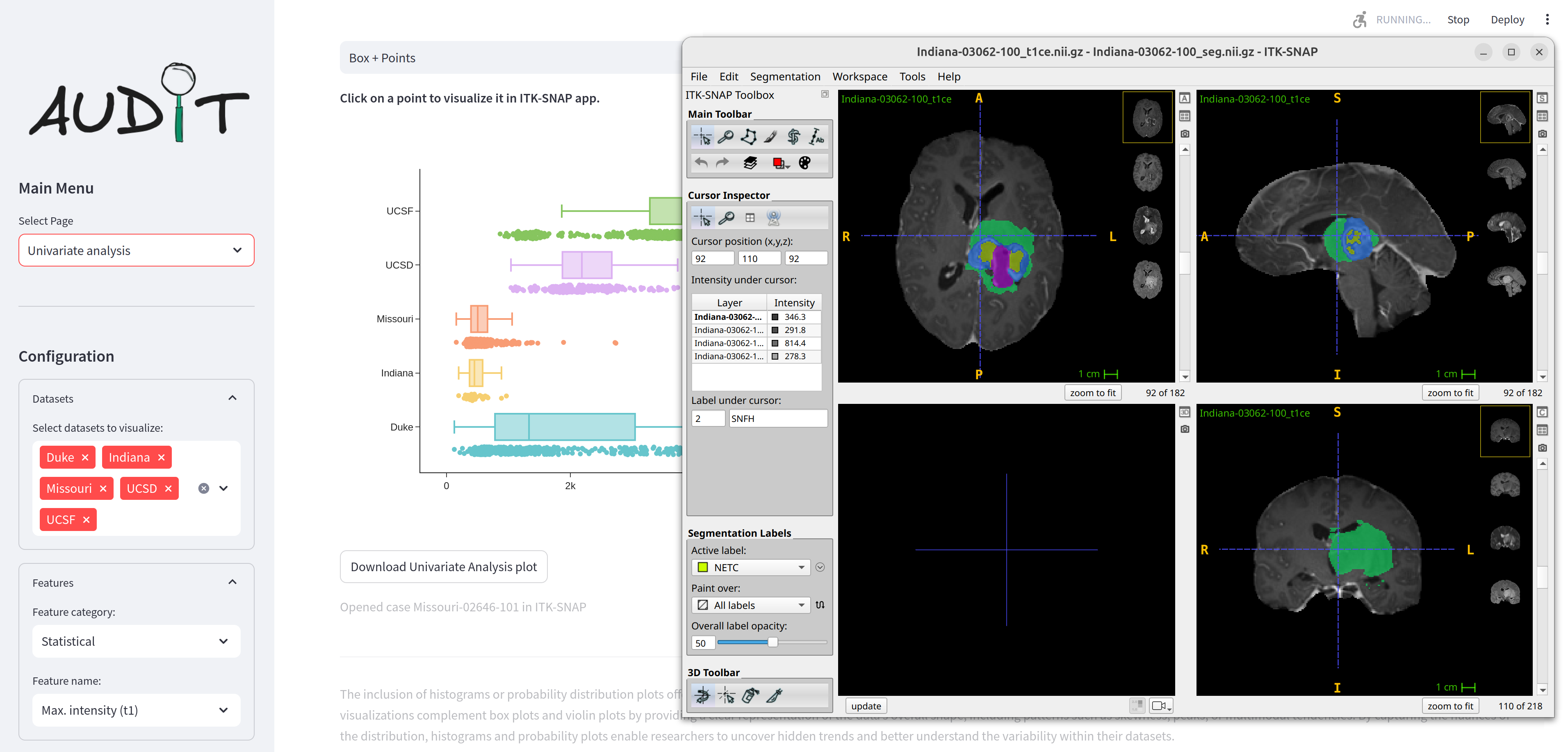

Figure 2: Subject Indiana-03062-100 exploration directly on ITK-SNAP by clicking on a point from the boxplot shown in Figure 1.
7. Perform inference
In addition to analyzing data distributions, studying correlations, identifying anomalous subjects, and many other analyses, one of AUDIT's main functionalities is the evaluation of AI medical segmentation models. To perform inference, we used the models presented at MICCAI 2025, specifically the top 4 ranked models in the Adult Glioma Segmentation (Pre & Post-Treatment) challenge.
For this purpose, we leveraged the brats library, which contains the Docker containers for each of the models:
| Year | Rank | Authors | Paper | Available | Model ID |
|---|---|---|---|---|---|
| 2025 | 1st | Ishika Jain, et al. | N/A | ❌ | BraTS25_1 |
| 2025 | 2nd | Qu Lin, et al. | N/A | ✅ | BraTS25_2 |
| 2025 | 3rd | Liwei Jin, et al. | N/A | ✅ | BraTS25_3A |
| 2025 | 3rd | Adrian Celaya, et al. | N/A | ❌ | BraTS25_3B |
After performing inference on the 5 subdatasets (Duke, Indiana, Missouri, UCSD, and UCSF) with each of the 4 models, your project structure should look like the following, for example for subject Duke-02060-100:
brats2024_project/
├── datasets/
├──── BraTS_2024_by_site/
├────── Duke/
├────── Duke_images/
├────────── Duke-02060-100/
├──────────── Duke-02060-100_flair.nii.gz
├──────────── Duke-02060-100_t1.nii.gz
├──────────── Duke-02060-100_t2.nii.gz
├──────────── Duke-02060-100_t1ce.nii.gz
├──────────── Duke-02060-100_seg.nii.gz
├────────── .....
├────── Duke_seg/
├────────── BraTS25_1/
├──────────── Duke-02060-100/
├────────────── Duke-02060-100_pred.nii.gz
├──────────── .....
├────────── BraTS25_2/
├────────── BraTS25_3A/
├────────── BraTS25_3B/
Important
The suffixes _seg and _pred are reserved keywords within AUDIT and are necessary for metric calculation.
8. Run metric extraction
Now that the datasets are ready, let's configure metric extraction. Just as we did previously, we now need to configure
the file named metric_extraction.yaml.
Here we provide the config file needed to extract metrics for the Duke dataset. Paths to datasets, sequence names, label mappings, metrics to compute, and output paths need to be defined. The same configuration file should be prepared for each of the other datasets.
# Path to the raw dataset
data_path: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Duke/Duke_images'
# Paths to model predictions
model_predictions_paths:
BraTS25_1: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Duke/Duke_seg/BraTS25_1'
BraTS25_2: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Duke/Duke_seg/BraTS25_2'
BraTS25_3A: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Duke/Duke_seg/BraTS25_3A'
BraTS25_3B: '/home/usr/brats2024_project/datasets/BraTS_2024_by_site/Duke/Duke_seg/BraTS25_3B'
# Mapping of labels to their numeric values
labels:
BKG: 0
NETC: 1
SNFH: 2
ET: 3
RC: 4
# List of metrics to compute
metrics:
dice: true
jacc: true
accu: true
prec: true
sens: true
spec: true
haus: true
size: true
# Library used for computing all the metrics
package: audit
# Path where output metrics will be saved
output_path: '/home/usr/brats2024_project/outputs/metrics'
filename: 'Duke'
logs_path: '/home/usr/brats2024_project/logs/metric'
# Resources
cpu_cores: 4
Run metric extraction by using the following command:
After execution, /home/usr/brats2024_project/outputs/metrics will contain the extracted metrics for all the datasets.
Important
All paths must be absolute. Otherwise, AUDIT may fall back to its internal default config files.
9. Launch the dashboard (with predictions)
Now that we have generated all predictions and extracted both features and metrics, we can relaunch the dashboard as we did in step 6. However, in this case we must include new lines in our configuration file to enable reading of the predictions.
Here we provide the remaining portion of the configuration file started in section 6. Users should concatenate this information with the previous configuration.
# Paths for metric extraction CSV files
metrics:
Duke: "${metrics_path}/extracted_information_Duke.csv"
Indiana: "${metrics_path}/extracted_information_Indiana.csv"
Missouri: "${metrics_path}/extracted_information_Missouri.csv"
UCSD: "${metrics_path}/extracted_information_UCSD.csv"
UCSF: "${metrics_path}/extracted_information_UCSF.csv"
# Paths for models predictions
predictions:
Duke:
BraTS2025_1: "${datasets_path}/Duke/Duke_seg/BraTS25_1"
BraTS2025_2: "${datasets_path}/Duke/Duke_seg/BraTS25_2"
BraTS2025_3A: "${datasets_path}/Duke/Duke_seg/BraTS25_3A"
BraTS2025_3B: "${datasets_path}/Duke/Duke_seg/BraTS25_3B"
Indiana:
BraTS2025_1: "${datasets_path}/Indiana/Indiana_seg/BraTS25_1"
BraTS2025_2: "${datasets_path}/Indiana/Indiana_seg/BraTS25_2"
BraTS2025_3A: "${datasets_path}/Indiana/Indiana_seg/BraTS25_3A"
BraTS2025_3B: "${datasets_path}/Indiana/Indiana_seg/BraTS25_3B"
Missouri:
BraTS2025_1: "${datasets_path}/Missouri/Missouri_seg/BraTS25_1"
BraTS2025_2: "${datasets_path}/Missouri/Missouri_seg/BraTS25_2"
BraTS2025_3A: "${datasets_path}/Missouri/Missouri_seg/BraTS25_3A"
BraTS2025_3B: "${datasets_path}/Missouri/Missouri_seg/BraTS25_3B"
UCSD:
BraTS2025_1: "${datasets_path}/UCSD/UCSD_seg/BraTS25_1"
BraTS2025_2: "${datasets_path}/UCSD/UCSD_seg/BraTS25_2"
BraTS2025_3A: "${datasets_path}/UCSD/UCSD_seg/BraTS25_3A"
BraTS2025_3B: "${datasets_path}/UCSD/UCSD_seg/BraTS25_3B"
UCSF:
BraTS2025_1: "${datasets_path}/UCSF/UCSF_seg/BraTS25_1"
BraTS2025_2: "${datasets_path}/UCSF/UCSF_seg/BraTS25_2"
BraTS2025_3A: "${datasets_path}/UCSF/UCSF_seg/BraTS25_3A"
BraTS2025_3B: "${datasets_path}/UCSF/UCSF_seg/BraTS25_3B"
Launch the app again with:
10. Model evaluation
AUDIT presents different analysis modes to evaluate model behavior, from high-level granularity down to fine-grained details at the patient and region level. Some of the analyses we can perform include the following:
10.1 Segmentation error matrix
The segmentation error matrix allows you to analyze in detail which regions your model confuses. It is a pseudo-confusion matrix normalized at the ground truth level. For more details about how this analysis mode works, check out the documentation.

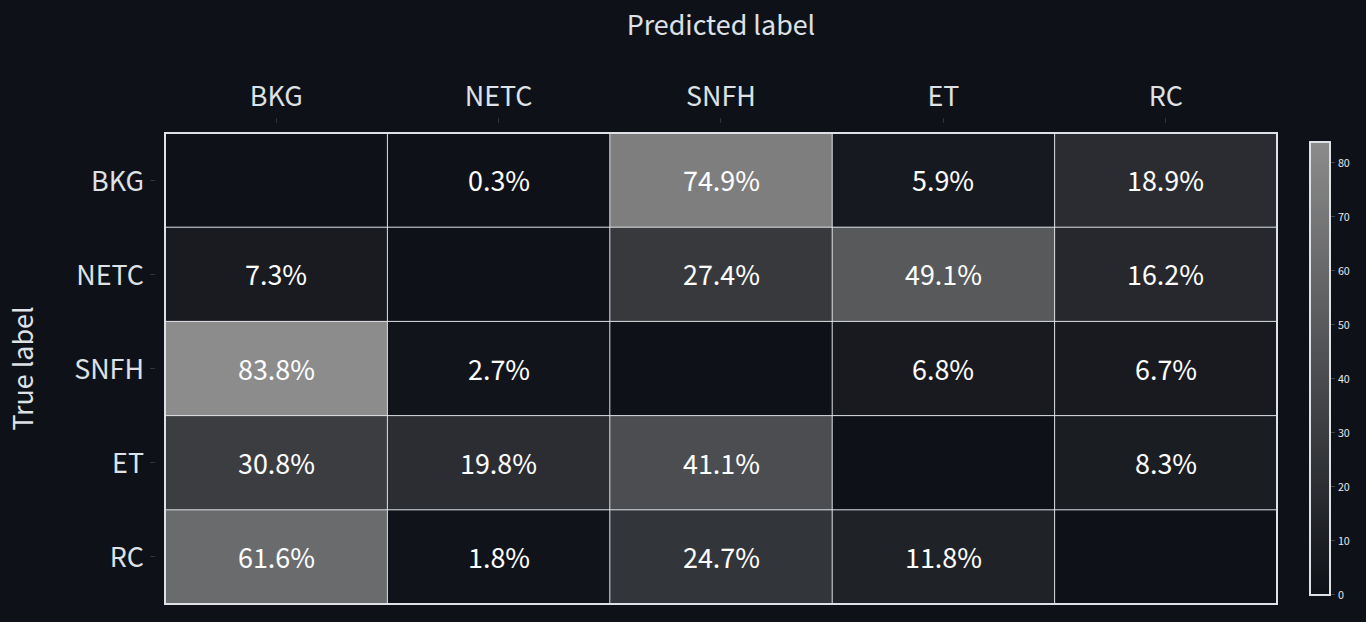

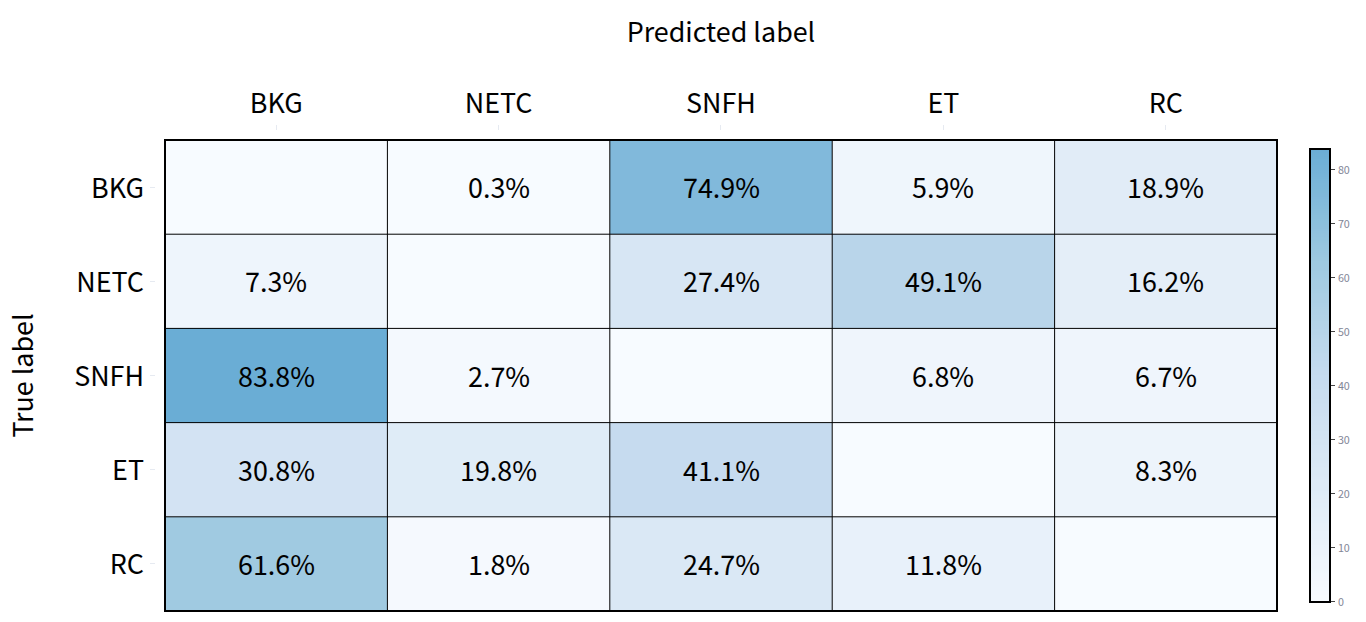

Figure 3: Segmentation error matrix for the Duke dataset and BraTS2025_1 model.
The matrix is analyzed at a global level, encompassing all errors made by the model at a high level throughout the entire dataset. The main problem of the model is confusing Background with the SNFH region. Therefore, developers should focus on finding strategies to minimize this weakness. The next most frequent confusion is predicting Background when the actual label is RC. However, it's important to note that this evaluation is done as a percentage normalized at the actual region level, so it must be interpreted carefully.
If we focus on a specific subject, for example patient Duke-02060-100, we can analyze whether this same pattern holds in absolute terms:

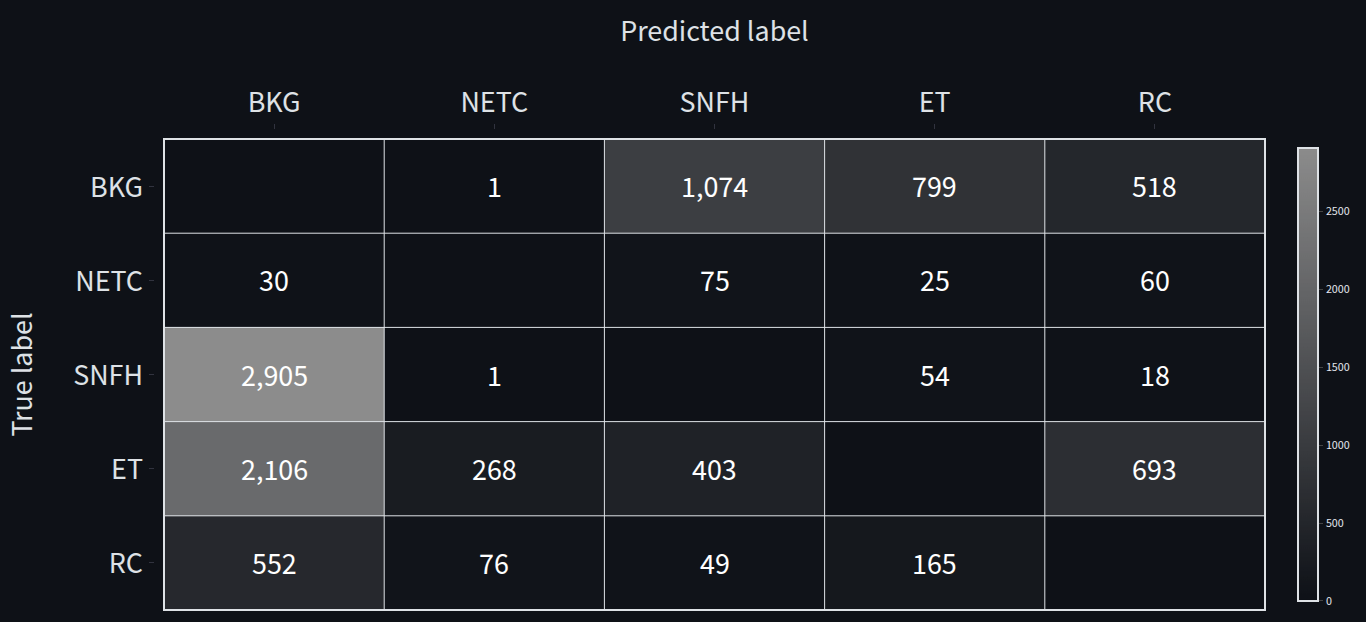

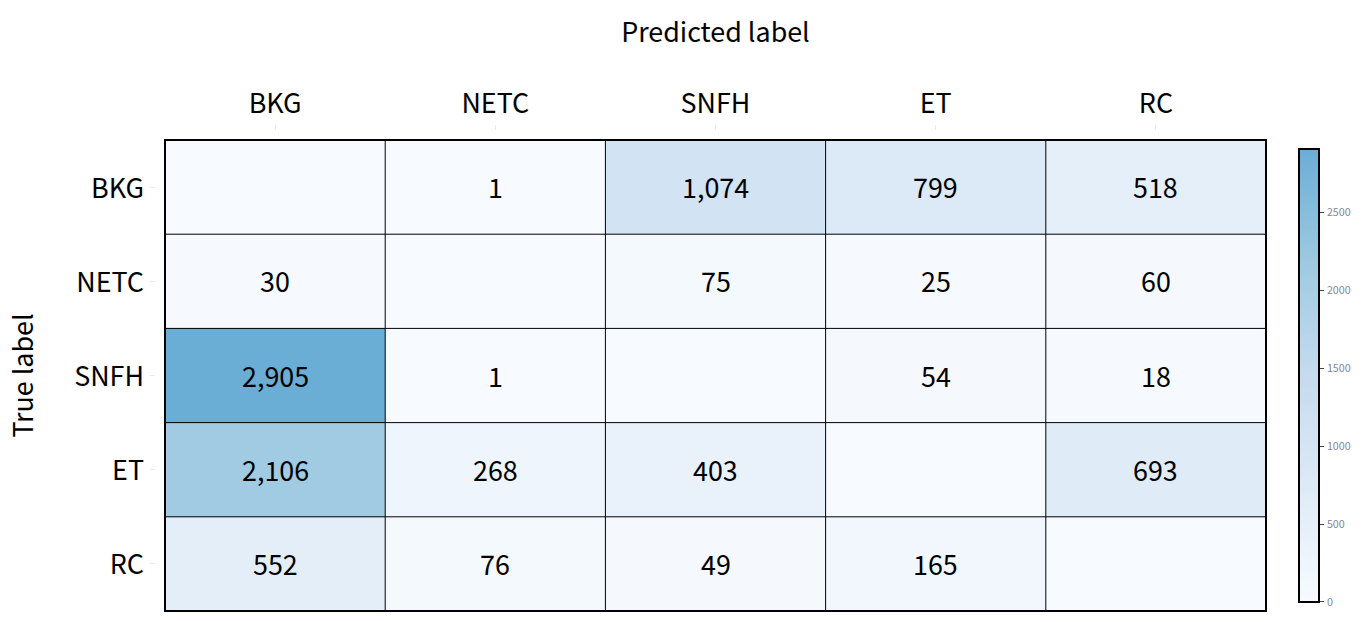

Figure 4: Segmentation error matrix for patient Duke-02060-100 from the Duke dataset and BraTS2025_1 model.
The behavior of confusing Background and SNFH that we observed at the dataset level also holds in absolute terms for this specific patient. A total of 2,905 voxels were labeled as Background when they were actually voxels labeled as tumoral by the medical experts (SNFH). However, for this specific patient, there are a total of 2,106 voxels that were labeled as Background again, but actually belonged to the ET region.
This is why it's crucial to understand not only the general behavior of the model, but also the specific cases. Now that we know that for this specific patient the ET region was incorrectly labeled, we should analyze in detail the MRI characteristics of this patient to see if there is any peculiarity that makes that region especially difficult to segment.
10.2 Single model performance
Analyzing model performance as a function of different characteristics allows us to understand whether our model has any bias. For example, we can answer questions such as: does my model perform better when predicting tumors that are far from the brain's center of mass, or does our model predict better for tumors belonging to a specific pathology? For more details about how this analysis mode works, check out the documentation.
Ideally, what we would expect to see is a plot where we don't visualize any specific trend, indicating that there is no bias. That is precisely what we observe in the following figure:
Figure 5: Performance analysis of the BraTS2025_1 model as a function of tumor location for each subset.
As we can see, the model has been trained with data that is robust enough in terms of tumor location not to have problems with different locations.
Note
We recommend that users conduct their own analyses and draw their own conclusions, as certain correlations may not be linear, and transformations such as logarithmic could reveal hidden trends.
10.3 Pair-wise model performance
The BraTS competition awarded third place to two different models, here called BraTS25_3A and BraTS25_3B on the private test set. We don't have access to it and are evaluating the models on the training set itself. However, this is sufficient for our demonstrative purposes.
10.3.1 Pair-wise model performance - Aggregated view
Let's make a comparison taking the BraTS25_3A model as the baseline model and BraTS25_3B as the benchmark. In our case, having the dataset divided by Site, we can analyze the differences individually. We will use the Dice metric as it is the most widely reported in medical segmentation problems.

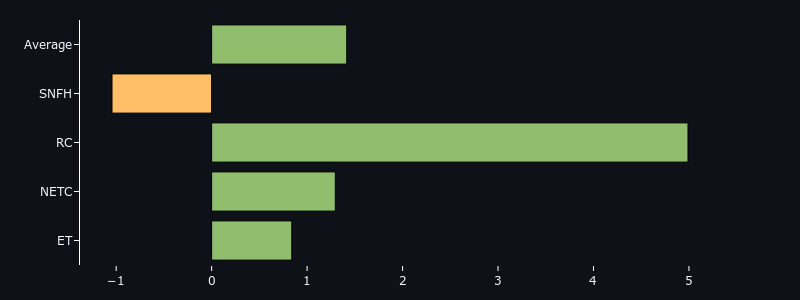

Figure 6: Pairwise model performance comparison between BraTS25_3A and BraTS25_3B models for the Duke subset.
On average, the BraTS 3B model improved the performance of the BraTS 3A model by up to 1.42% for the Dice metric. The improvement came mainly from better segmentation of the RC region, and to a lesser extent from the NETC and ET regions. However, the model worsened its performance for the SNFH region by around 1%.
AUDIT also provides an estimation of whether the differences are statistically significant. For example, if we select the Missouri subset, we can verify that the average differences between both models are 0.09%, apparently a minimal difference. When performing the Wilcoxon signed-rank statistical test due to the violation of parametric assumptions, it is verified that there are no significant differences to reject the null hypothesis. Therefore, on this specific subset, the behavior of both models is similar.

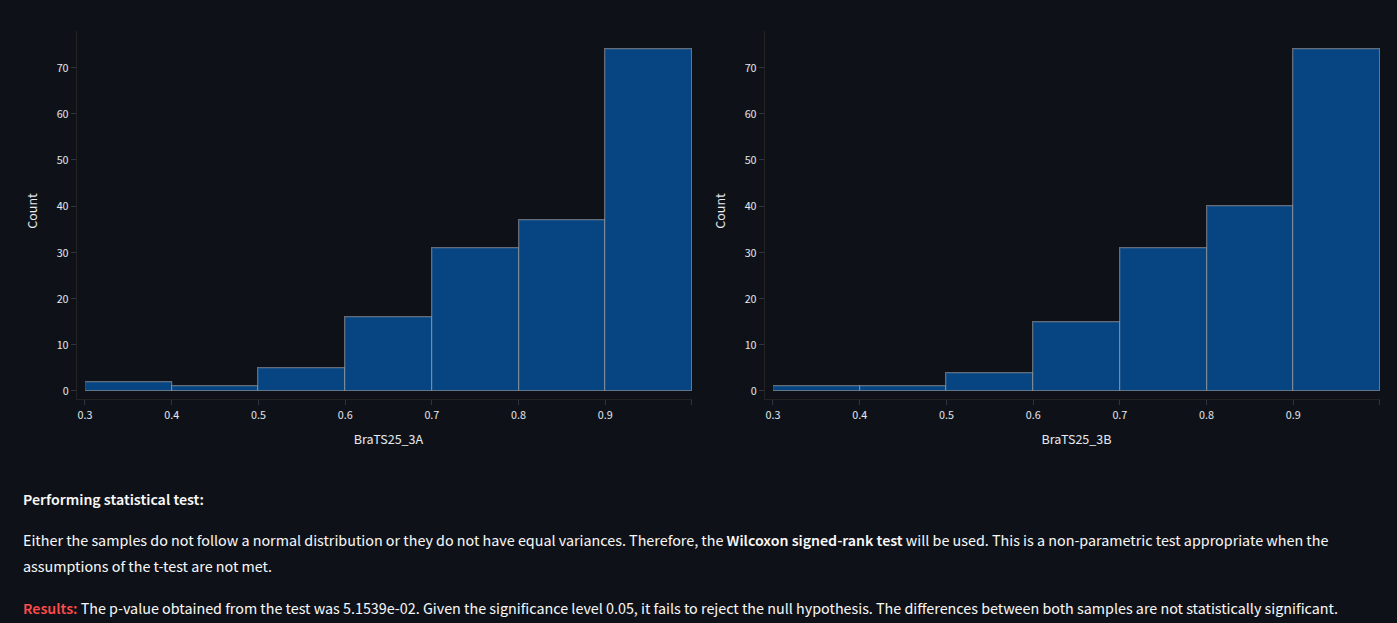

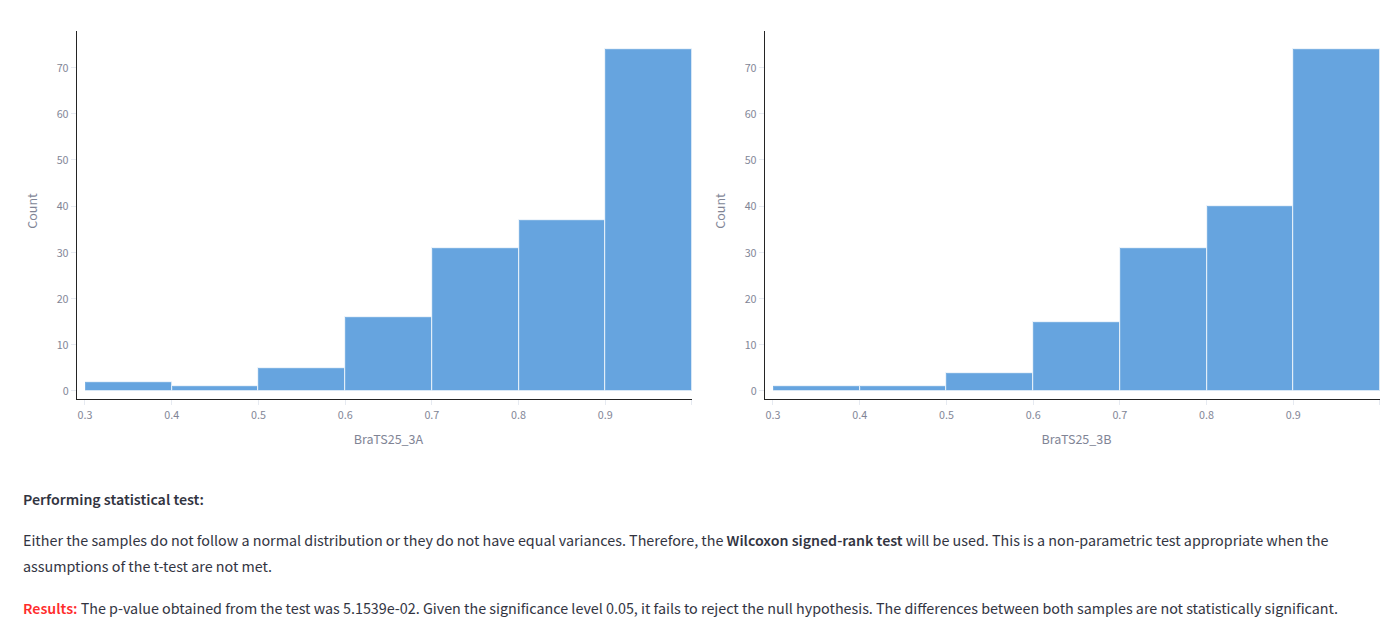

Figure 7: Statistical test results between models BraTS25_3A and BraTS25_3B to verify if the differences are statistically significant.
10.3.4 Pair-wise model performance - Disaggregated view
In general, artificial intelligence models in the field of medical imaging are analyzed at a high level, comparing general metrics such as mean or median, and sometimes not even providing a measure of variance. This is why it's essential to understand how the model behaves at the patient level, why the model fails in some specific cases, and to ensure that the new version of the model we develop not only achieves better average results but also generalizes well and doesn't make significant errors on certain patients that we were already able to segment correctly.
With AUDIT we can analyze model performance at the patient level. We can obtain a Top-K patients to analyze either by name, by baseline model performance, benchmark model performance, sort ascending or descending, etc. Let's compare the performance of models BraTS_3A and BraTS_3B on the UCSF subset.

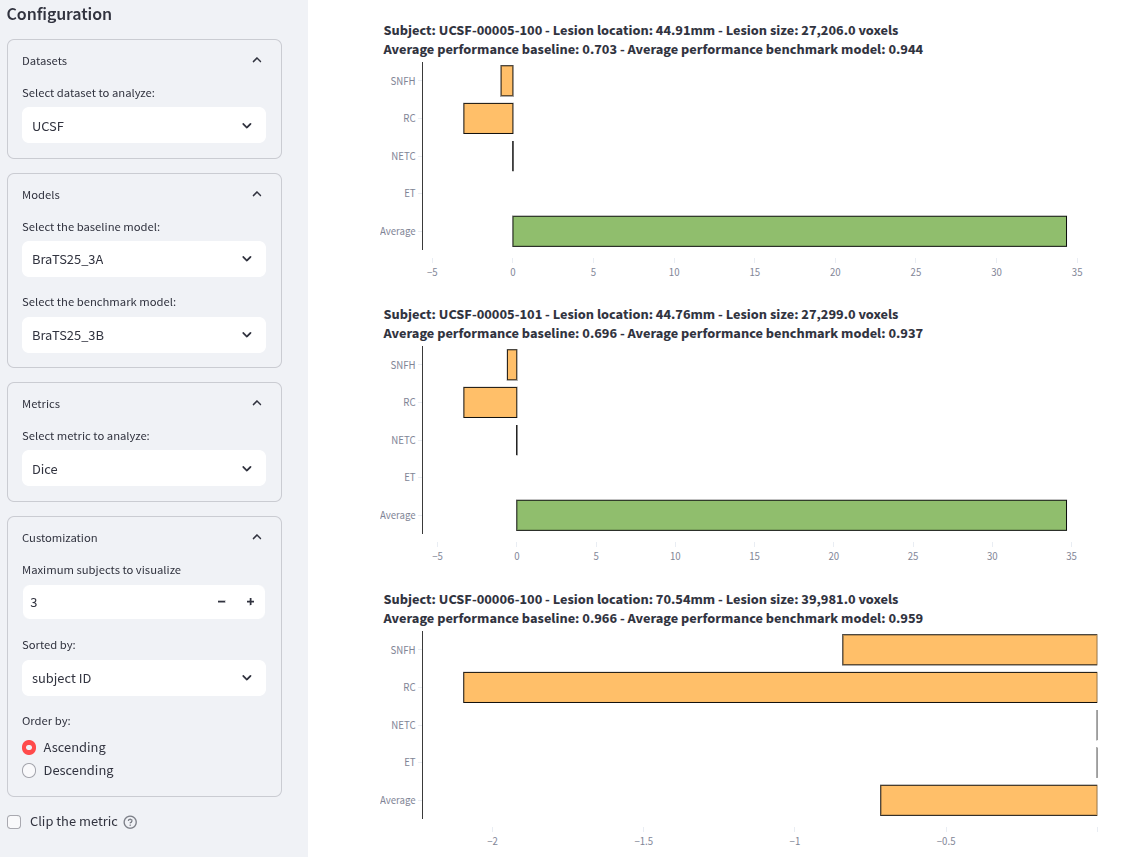

Figure 8: Comparison results between models BraTS25_3A and BraTS25_3B at the subject level.
As can be observed, BraTS25_3B, our benchmark, has clearly improved the results obtained by baseline BraTS25_3A in cases UCSF-00005-100 and UCSF-00005-101, going from values around 0.70 to values of 0.94. This same exercise should be done for those patients for which performance was poor, to understand what the weaknesses of our model are.
11. Conclusions
Throughout this tutorial we have presented some of the features that AUDIT provides. It not only allows analyzing differences in distributions, but its strength lies in model evaluation and low-level comparison—analyses that often go unnoticed when presenting results in the field of medical imaging.
